Modified Hydrophilic Polyurethane Injection Resin Epoxy Materials For Grouting Two Component
Product Details:
| Place of Origin: | China |
| Brand Name: | LIHONG |
| Certification: | ISO9001,14001,45001,Halal certification,OU certification |
| Model Number: | Epoxy Resin Grout |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2mt |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Barrel 10L |
| Delivery Time: | 10-15days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100MTS/ MONTH |
|
Detail Information |
|||
| Product Name: | Epoxy Resin Grout | Material: | Epoxy Resin |
|---|---|---|---|
| Appearance: | Liquid | Usage: | Grouting, Plugging, Waterproof |
| Transport Package: | Barrel 10L | Compressive Strength: | ≥70 |
| The Shelf Life: | ≥15 | Dry Bond Strength: | ≥4.0 |
| Wet Bonding Strength: | ≥3.0 | ||
| Highlight: | Modified hydrophilic polyurethane injection resin,hydrophilic polyurethane injection resin Epoxy,Epoxy materials for grouting |
||
Product Description

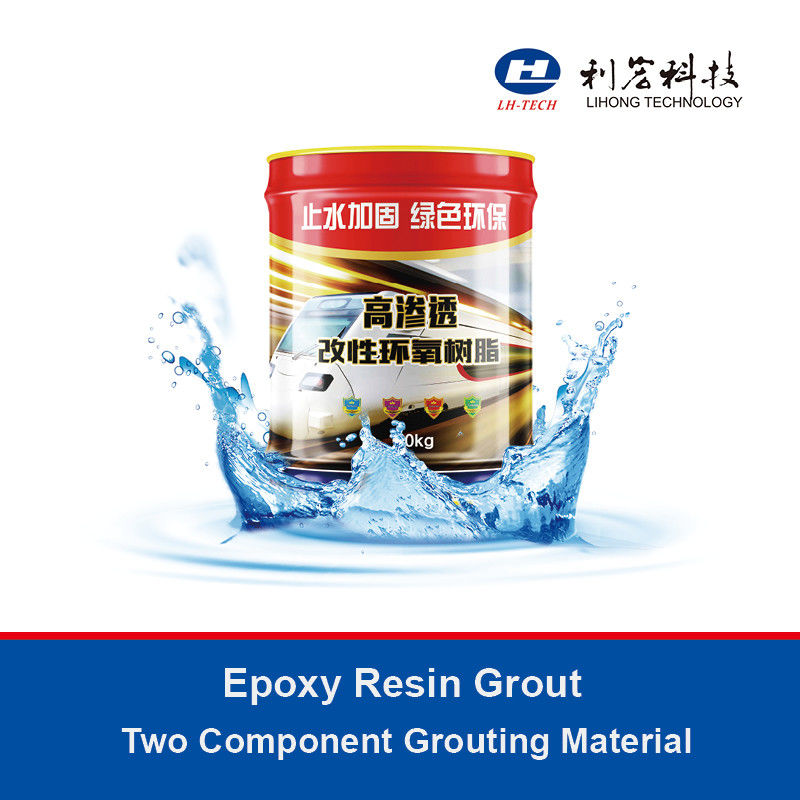

Epoxy Resin Injection Grout
Two Component Grouting Material
High Permeability Modified Two Component Epoxy Resin Injection Grout Concrete Repair Grouting Material
The high permeability modified epoxy is a low viscosity, double liquid, low temperature hardened, hardened type of epoxy for injection repair. The product can be cured in water, curing time can be controlled, non-shrinkage after curing characteristics, mainly used for concrete structure crack leakage repair. It has excellent binding force for various structures, especially for the reinforcement of concrete leakage. With the aid of mechanical high-pressure injection, the product can fully achieve the effect of water-proof and structural reinforcement for the micro-cracks in the structure.
Polyurethane Grouting Fluid · Grouting Material · Made In China
Product Features
—
1. Double liquid type, operating at room temperature. Material A and material B through the special double liquid epoxy grouting, machine mixing after pouring, the effect is better.
2. The consolidated body strength is big, after the synthesis water does not disperse, the high bonding, after the curing toughness is high, does not shrink.
3. Applicable to all concrete structure of the structure of the leakage water plugging and structural reinforcement.
Polyurethane Grouting Fluid · Grouting Material · Made In China
Application
—
It is suitable for filling and reinforcing construction joints, deformation joints, cracks and hollows in various concrete building structures in bridges, subways, tunnels, channels, water conservancy dams, mine rock formations, harbors and other projects.
Note
—
Products in transport, should be strictly rain and sun, handling to avoid collisions and falls, the original packaging damaged timely replacement of new barrels.
The product should be sealed and stored in the dry and ventilated room, away from the open fire, insulation heat source radiation.
Polyurethane Grouting Fluid · Grouting Material · Made In China
Performance
—
|
Number |
Test Items |
Index |
|
|
|
Project Nam |
Unit |
|
|
1 |
Density |
G/Cm3 |
>1.00 |
|
2 |
Compressive Strength |
Mpa |
≥ 70 |
|
3 |
Tensile Strength |
Mpa |
≥ 15 |
|
4 |
Dry Bond Strength |
Mpa |
≥ 4.0 |
|
5 |
Wet Bonding Strength |
Mpa |
≥ 3.0 |
|
6 |
Impermeability Pressure |
Mpa |
≥ 1.2 |
|
7 |
Anti-seepage pressure ratio |
% |
≥ 400 |
Polyurethane Grouting Fluid · Grouting Material · Made In China
Plugging and reinforcing epoxy resin grouting fluid
—
Modified epoxy chemical grouting fluid is a new chemical grouting reinforcing material with low viscosity and high strength. It is composed of modified epoxy resin and curing agent. Under the action of curing agent, it not only achieves the function of plugging, but also realizes the effect of reinforcement. It is suitable for repairing concrete gap and foundation grouting reinforcement of airport runway, reservoir, dam, port and wharf. Chemical grouting for tunnels, basements, air raid shelters, culverts and mines of underground works.And the internal and external crack plugging and reinforcement works of beam, slab, column structure, kitchen, bathroom, pool and swimming pool of civil buildings. Also repair and reinforcement of honeycomb defects in beams, slabs, columns and walls of building structures.
| Product Model | 1:1 Epoxy resin grounting material |
4:1 Epoxy resin grounting material |
| Product Proportion | main agent :10kg,curing agent :10kg | main agent :20kg,curing agent :5kg |
| Mixing Ratio | A:B = 1:1 | A:B = 4:1 |
| Slurry Density (G/Cm3) | 1.16 | 1.16±0.05 |
| Initial Viscosity(Mpa/S) | 190 | 30minutes(23℃ ±2℃ ) |
| Initial Hardening | 40minutes-2hours | 10hours |
| Completely Hardened | 3-7days | 3-7days |
| Operational Time | 40minutes | 40minutes |
| Viscosity | 100-500 MPA.S | 100-500 MPA.S |
| Tensile Strength | 20MPA | > 15MPA |
| Compressive Strength | 70MPA | ≥ 70MPA |
| Tensile Shear Strength | 8.5 | ≥ 8.0 |
| Bond Strength | 6.0MPA | |
| Impermeable Pressure | 1.5 | ≥ 1.2 |
| Permeation Pressure Ratio(%) | 450 | ≥ 400 |
Polyurethane Grouting Fluid · Grouting Material · Made In China

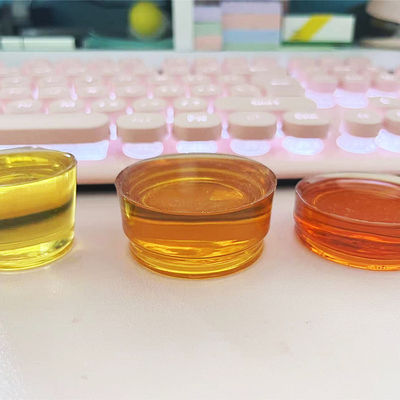

Different Proportion.sample Effect Display
—
1:1
Synthetic resin type mixed into a milky yellow liquidroom temperature about 30 minutes to set.
2:1
Fast curing, mixed with light yellow!Initial setting at room temperature about 30 minutes
4:1
High permeability, mixed with a light red amber color!Initial setting at room temperature about 30 minutes
Polyurethane Grouting Fluid · Grouting Material · Made In China

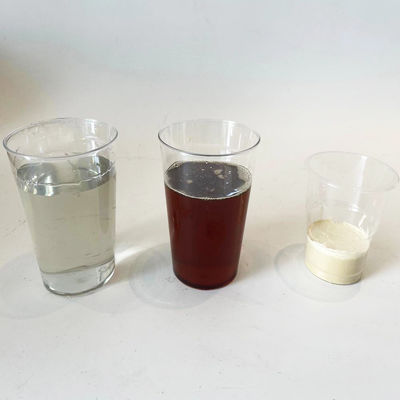

Sample ratio complete hardening effect diagram
—
Material ratio method
—
Polyurethane Grouting Fluid · Grouting Material · Made In China
Products Advantage
—
1. Dense without bubbles, high strength, Normal temperature hardenincHigh adhesion,no shrinkage
2. High intensity, hammer smashing constantly , Low viscosity and toughness
3. Reinforcement and imperme ability engineering waterproof, Solve the problem of water leakage in building cracks and reinforce buildina bodies
Strong Bonding Forcereinforcement Does Not Leak
Polyurethane Grouting Fluid · Grouting Material · Made In China

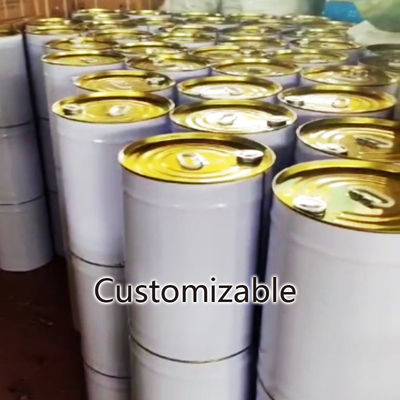

Product packaging
—
1. Stored in clean, dry and sealed iron drums
2. Transport according to regular product requirements, prevent rain, exposure, squeezing, and collision, and ensure that th packaging is intact.
3. The product should be stored in a ventilated, dry and cool place, away from direct sunlight and rain. The storage temperature should not be higher than 40℃.
4. Under normal storage conditions, the shelf life is 9months.
Polyurethane Grouting Fluid · Grouting Material · Made In China
FAQ
—
Q:Are you a factory or trading company?
We are a factory.
Q:Where is your factory located? How can I visit there?
Our factory is located in Huai'an City, Jiangsu Province, China. All our clients, from home or abroad, are warmly welcome to visit us!
Q:Can I get some samples?
Yes, we can supply the free sample, but the shipping cost be paid by our customers.
Q:Can you accept small order?
Yes.
Q:What is term of payment?
1) 30%T/T down payment and balance against the copy of B/L;
2) or 100% L/C at sight.
Q:How about delivery leadtime?
About 7-14 days after payment confirmed. (Except Chinese holiday)
Which port will be used as loading port?
Nanjing Port or Shanghai Port.
How to confirm the Product Quality before placing orders?how can we guarantee quality?
You can get free samples for your testing.We can manufacture the products according to your specific requirment. Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q:How about import customs fee?
A:Our sales will declare the value as customer's require normally. Import duties, taxes and charges are not included in the itemprice or shipping. These charges are the buyers' responsibility. Please check with your country customs office to determine what these additional cost will be prior to bidding/buying. If the goods were turned back or destroyed for unable ustoms-clearance, the related cost will be paid by customers.
Polyurethane Grouting Fluid · Grouting Material · Made In China
About Us
—
Jiangsu Lihong Technology Development Co., Ltd. is a national high-tech enterprise integrating R&D, production, sales and technical services. The company is located in the Salt Chemical New Materials Industrial Park in Huai'an City, Jiangsu Province, covering an area of 150 acres. The total investment of the factory exceeds RMB 500 million. Currently, there are 14 production lines that lead the industry with independent innovation, with an annual production capacity of more than 100,000 tons.
The company is the key laboratory of green polyurethane materials in Huai'an City, a national high-tech enterprise, a specialized and innovative small and medium-sized enterprise in Jiangsu Province, a private technology-based enterprise in Jiangsu Province, and a member unit of the China Polyurethane Industry Association.
